| Item |
Description |
| LCD Size |
21.3” UXGA TFT LCD, LED Backlight |
| Display Area (mm) |
432 (H) x 324 (V) mm |
| Max Resolution |
1600 (H) x 1200 (V) pixels |
| Brightness (cd/m²) |
500 cd/m² |
| Contrast Ratio |
1000:1 |
| View Angle (H/V) |
178º(H) / 178º(V) (89°/89°/89°/89°) |
| Signal Input (Military Connector) |
DVI Input x 2 (D38999/20WC35SN)
VGA Input x 1 (D38999/20WC35PN)
|
| Response time |
10ms |
| Display Color |
16,277,216 colors simultaneously. |
| Dimensions (W x H x D) |
480mm (W) x 400mm (H) x 72mm (D) |
| Power input |
Input range：18 ~ 36VDC
Military Connector D38999/20WA98PN
|
| Net Weight |
7.8 Kg (TBD) |
| Mounting Method |
Rack Mount / VESA Mount |
| Operation Temperature |
-40°C~55°C
Heating element designed and
integrated in system
|
| Storage Temperature |
-40~+70°C |
| Chassis |
Aluminum alloy |
| Color |
Black RAL9005 (TBD) |
| Function key |
5keys (Power、Menu、Down、UP、Enter) |

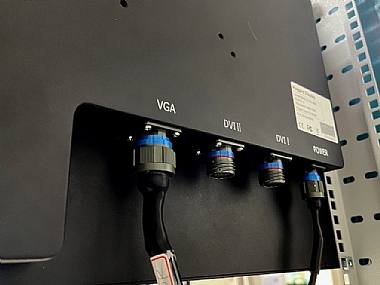

| Connector VGA |
D38999/20WC35PN for VGA Input |
| Connector DVI 1 |
D38999/20WC35SN for DVI Input |
| Connector DVI 2 |
D38999/20WC35SN for DVI Input |
| Connector Power |
D38999/20WA98PNl for Power Input |
| Electromagnet Compatibility |
MIL-STD-461G Complied
MIL-STD 1275 Complied
|
| Environmental Requirements |
MIL-STD-810G Complied |
| Certification |
CB Certificate
CE Certificate
ENERGY Certificate
|
